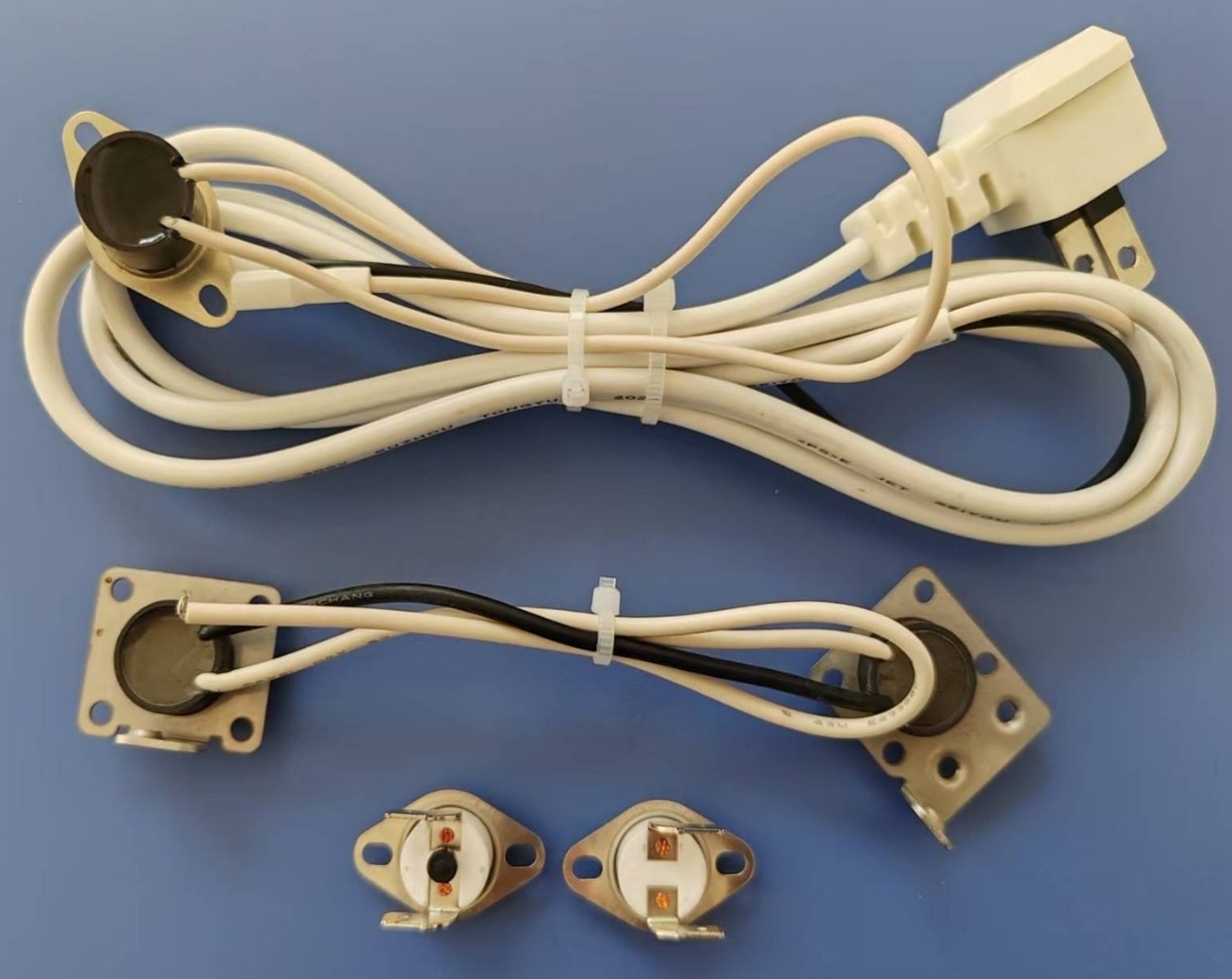

KSD1 Automatic reset, Manual reset type
OVERVIEW
KSD1 series temperature controller is a thermal sensitive bimetallic strip temperature controller with a casing.
By the effect of external temperature on the disc-shaped thermosensitive bimetallic strip, it deforms and
instantly bounces, driving the contact action to achieve the purpose of disconnecting or closing electrical
equipment. Its working temperature is fixed, the action is reliable, the service life is long, and there is no
interference.
This product is mainly suitable for temperature control or overheating protection of various types of bathroom appliances such as smart toilets.
TECHNICAL SPECIFICATION
|
动作温度范围 Temperature range |
0～180 ℃(电木) 、 0～270 ℃(陶瓷自动复位) 0～250 ℃(陶瓷手动复位) 0～180 ℃(Phenolic) 、 0～270 ℃(Ceramics Automatic reset) 0～250 ℃(Ceramics Manual reset) |
|
动作温度偏差 Action temperature deviation |
±5 ℃、±3 ℃ |
|
认证证书 Certification |
CQC、UL、CUL、TUV、VDE |
|
额定电气性能 Rated Electrical Performance |
AC125V5~16A 250V5~16A(电阻负载) AC125V5~16A 250V5~16A(Resistive load) |
|
耐久性试验 Endurance Test |
自动复位100000次(电阻负载) Automatic Reset 100000 Cycle (Resistive load) |
|
手动复位10000次(电阻负载) Manual Reset 10000 Cycle (Resistive load) |
|
|
常态绝缘电阻 Insulation Resistance |
大于100MΩ （DC500V兆欧表） ＞100MΩ（DC500V Megger） |
|
接触电阻 Contact Resistance |
小于50mΩ＜ 50mΩ |
|
电气强度 Electric intensity |
1500V/1min 无击穿 1500V/1min without breakdown； |
|
复位方式 Reset Method |
自动复位、手动复位 Automatic Reset, Manual reset |
