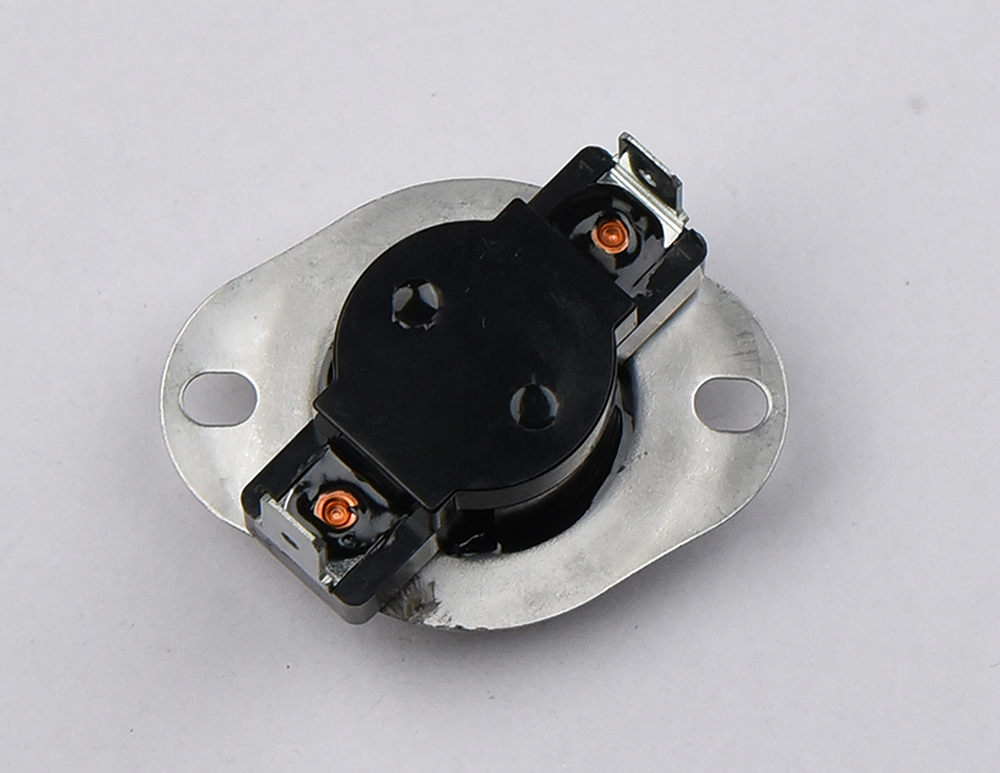

KSD2 C Type
OVERVIEW
KSD2 series temperature controller is a thermal sensitive bimetallic strip temperature controller with a casing. By the effect of external temperature on the disc-shaped thermosensitive bimetallic strip, it deforms and instantly bounces, driving the contact action to achieve the purpose of disconnecting or closing electrical equipment. Its working temperature is fixed, the action is reliable, the service life is long, and there is no interference.
This product is mainly suitable for temperature control or overheat protection in various devices such as heat pumps, air conditioners with heating and cooling functions, washing machines, dryers, and combined washing and drying machines.
TECHNICAL SPECIFICATION
|
Temperature range |
0～150 ℃ |
| Action temperature deviation | ±3 ℃ |
| Certification | CQC、UL、TUV |
| Rated Voltage Range | ≤250VAC 50/60Hz |
|
Rated Current Range |
≤25A |
|
Endurance Test |
100,000 Cycle |
| Insulation Resistance | ＞100MΩ（DC500V Megger） |
| Contact Resistance | 小于50mΩ＜ 50mΩ |
| Electric intensity | 1500V/1min without breakdown； |
| Reset Method |
Automatic Reset |
