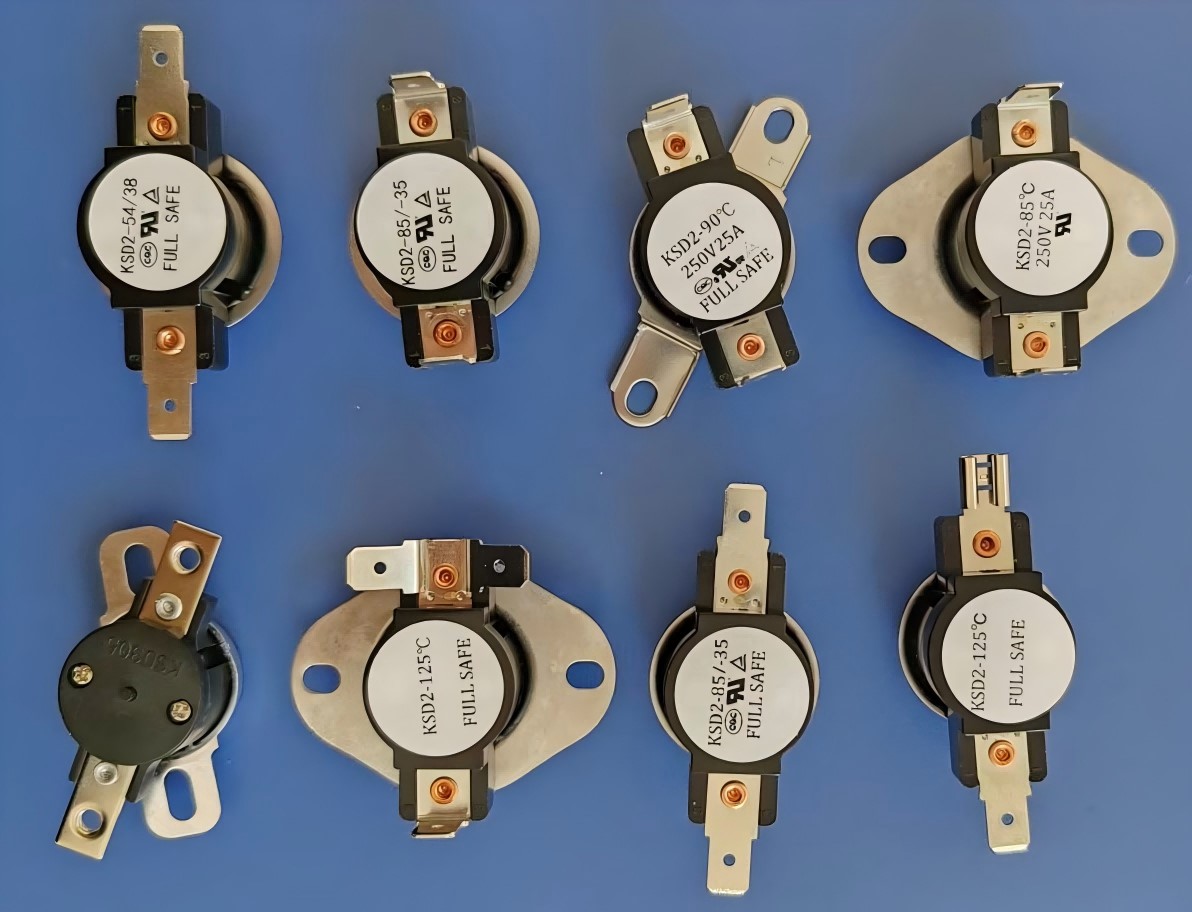

KSD2 Automatic reset type
OVERVIEW
KSD series temperature controller is a thermal sensitive bimetallic strip temperature controller with a casing. By the effect of external temperature on the disc-shaped thermosensitive bimetallic strip, it deforms and instantly bounces, driving the contact action to achieve the purpose of disconnecting or closing electrical equipment. Its working temperature is fixed, the action is reliable, the service life is long, and there is no interference.
This product is mainly suitable for temperature control or overheat protection in various devices such as heat
pumps, air conditioners with heating and cooling functions, washing machines, dryers, and combined washing
and drying machines.
TECHNICAL SPECIFICATION
动作温度范围
Temperature range
0～150 ℃
动作温度偏差
Action temperature deviation
±3 ℃
认证证书
Certification
CQC、UL、CUL、TUV、VDE
额定电气性能
Rated Electrical Performance
AC125V5~16A 250V5~16A(电阻负载)
AC125V5~16A 250V5~16A(Resistive load)
耐久性试验
Endurance Test
自动复位100000次(电阻负载)
Automatic Reset 100000 Cycle (Resistive load)
手动复位10000次(电阻负载)
Manual Reset 10000 Cycle (Resistive load)
常态绝缘电阻
Insulation Resistance
大于100MΩ （DC500V兆欧表）
＞100MΩ（DC500V Megger）
接触电阻
Contact Resistance
小于50mΩ＜ 50mΩ
电气强度
Electric intensity
1500V/1min 无击穿
1500V/1min without breakdown；
复位方式
Reset Method
自动复位、手动复位
Automatic Reset, Manual reset
